通过同一个端口访问网站或者连接设备

## 1、简要说明
项目上只能开放一个端口，那么可以通过OpenResty组件来实现，网站访问和设备上报用同一个端口。

## 2、上传OpenResty 镜像

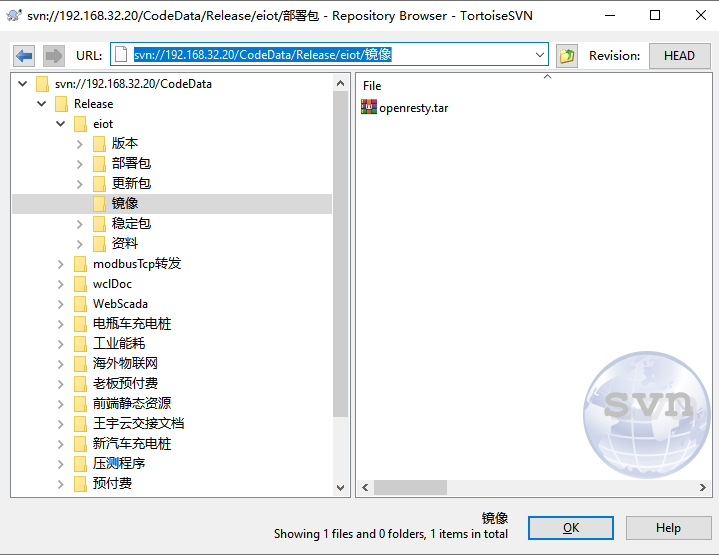

从 svn://192.168.32.20/CodeData/Release/eiot/镜像 下载 OpenResty 文件
![](/media/202603/2026-03-30_161534_7314540.272086675057962.png)
上传到 /home/acrel-iot-linux/docker/images 目录下，并运行以下命令进行导入
```bash
docker load -i /home/acrel-iot-linux/docker/images/openresty.tar
```

## 3、上传lua脚本
/home/acrel-iot-linux/config 目录下创建 lua目录，并在目录下创建 preread.lua文件，并且按照提示调整
将10.212.46.219改为服务器内网IP，20028改为TCP路由端口

```

local sock = ngx.req.socket(true)
if not sock then
    -- 1. TCP 协议
    ngx.var.backend = "10.212.46.219:20028"
    return
end

sock:settimeout(50)

local data = sock:peek(1)
if not data then
    -- 1. TCP 协议
    ngx.var.backend = "10.212.46.219:20028"
    return
end

local b = data:byte(1)

if b == 0x16 then
    -- 2. HTTPS 协议
    ngx.var.backend = "10.212.46.219:8890"
    return
end

-- 3. 判断 MQTT 协议
if b == 0x10 then
    ngx.var.backend = "10.212.46.219:30001"
    return
end

-- 4. 判断 HTTP (明文)
-- HTTP 请求通常以方法名开头：
-- GET     -> 0x47 ('G')
-- POST    -> 0x50 ('P')
-- PUT     -> 0x50 ('P')
-- HEAD    -> 0x48 ('H')
-- DELETE  -> 0x44 ('D')
-- OPTIONS -> 0x4F ('O')
-- PATCH   -> 0x50 ('P')
if b == 0x47 or b == 0x50 or b == 0x48 or b == 0x44 or b == 0x4F then
    -- 匹配到 HTTP 方法首字母，转发到明文 HTTP 后端
    ngx.var.backend = "10.212.46.219:8890"
    return
end

-- 1. 默认TCP 协议
ngx.var.backend = "10.212.46.219:20028"

```
运行以下命令，赋予执行权限
````bash
chmod o+r,o+x /home/acrel-iot-linux/docker/config/lua
````

## 4、Nginx 配置替换
stream 部分为新增内容，将20071替换为服务器开通的端口
```
#user  nobody;
worker_processes  8;
worker_rlimit_nofile 65535;

events {
    worker_connections  20480;
}

stream {
    error_log /usr/local/openresty/lua/stream.log debug;

tcp_nodelay on;
    proxy_ssl off;

server {
        listen 20071;
        set $backend "";

preread_by_lua_file /usr/local/openresty/lua/preread.lua;

ssl_preread on;
        proxy_pass $backend;

proxy_connect_timeout 3s;
        proxy_timeout 24h;
        proxy_socket_keepalive on;
    }
}

http {

client_max_body_size 100m;
    include       mime.types;
    default_type  application/octet-stream;
    sendfile        on;
    keepalive_timeout  65;

    server {
        listen 20003;
        server_name localhost 127.0.0.1;
        gzip on;
        gzip_buffers 32 4K;
        gzip_comp_level 6;
        gzip_min_length 100;
        gzip_types application/javascript text/css text/xml;
        gzip_disable "MSIE [1-6]\."; #配置禁用gzip条件，支持正则。此处表示ie6及以下不启用gzip（因为ie低版本不支持）
        gzip_vary on;

        location / {
            root /usr/local/web/vision_web;
        }

        location /exchange/ {
            proxy_pass http://127.0.0.1:20001/exchange/;
            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection "upgrade";
            proxy_set_header Host $host;
            proxy_cache_bypass $http_upgrade;
        }

location /basic/prepayment/{
	        proxy_pass http://127.0.0.1:19900/prepayment/;
	        proxy_http_version 1.1;
	        proxy_set_header Upgrade $http_upgrade;
	        proxy_set_header Connection "upgrade";
	        proxy_set_header Host $host;
	        proxy_cache_bypass $http_upgrade;
	        proxy_buffer_size 4096k;
		    proxy_buffers 16 4096k;
		    proxy_busy_buffers_size 8192k;
		    proxy_temp_file_write_size 8192k;
       }
        location = /50x.html {
            root html;
        }
    }

server {
        listen 20005;
        server_name localhost 127.0.0.1;
        gzip on;
        gzip_buffers 32 4K;
        gzip_comp_level 6;
        gzip_min_length 100;
        gzip_types application/javascript text/css text/xml;
        gzip_disable "MSIE [1-6]\."; #配置禁用gzip条件，支持正则。此处表示ie6及以下不启用gzip（因为ie低版本不支持）
        gzip_vary on;

        location / {
            root /usr/local/web/debug_web;
        }

        location /exchange/ {
            proxy_pass http://127.0.0.1:20001/exchange/;
            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection "upgrade";
            proxy_set_header Host $host;
            proxy_cache_bypass $http_upgrade;
        }

location /basic/prepayment/{
	        proxy_pass http://127.0.0.1:19900/prepayment/;
	        proxy_http_version 1.1;
	        proxy_set_header Upgrade $http_upgrade;
	        proxy_set_header Connection "upgrade";
	        proxy_set_header Host $host;
	        proxy_cache_bypass $http_upgrade;
	        proxy_buffer_size 4096k;
		    proxy_buffers 16 4096k;
		    proxy_busy_buffers_size 8192k;
		    proxy_temp_file_write_size 8192k;
       }

        location = /50x.html {
            root html;
        }
    }

server {
        listen 20111;
        server_name localhost 127.0.0.1;
        gzip on;
        gzip_buffers 32 4K;
        gzip_comp_level 6;
        gzip_min_length 100;
        gzip_types application/javascript text/css text/xml;
        gzip_disable "MSIE [1-6]\."; #配置禁用gzip条件，支持正则。此处表示ie6及以下不启用gzip（因为ie低版本不支持）
        gzip_vary on;

        location / {
            root /usr/local/web/iot_admin;
        }

        location /exchange/ {
            proxy_pass http://127.0.0.1:20001/exchange/;
            proxy_http_version 1.1;
            proxy_set_header Upwebgrade $http_upgrade;
            proxy_set_header Connection "upgrade";
            proxy_set_header Host $host;
            proxy_cache_bypass $http_upgrade;
        }

location = /50x.html {
            root html;
        }
    }

server {
        listen 20002;
        gzip on;
        gzip_buffers 32 4K;
        gzip_comp_level 6;
        gzip_min_length 100;
        gzip_types application/javascript text/css text/xml;
        gzip_disable "MSIE [1-6]\."; #配置禁用gzip条件，支持正则。此处表示ie6及以下不启用gzip（因为ie低版本不支持）
        gzip_vary on;
        location / {
            root /usr/local/web/appH5/dist/build/h5;
        }
        error_page 500 502 503 504 /50x.html;
        location = /50x.html {
            root html;
        }
    }

server {

        listen 8890;
#        listen 443 ssl;
#        server_name  localhost 127.0.0.1 domainName;
#	     ssl_certificate /cert/certificate.crt;
#        ssl_certificate_key /cert/certificate.key;
#        ssl_session_timeout 5m;
#        ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4;
#        ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
#        ssl_prefer_server_ciphers on;

        #charset koi8-r;
        gzip on;
        gzip_buffers 32 4K;
        gzip_comp_level 6;
        gzip_min_length 100;
        gzip_types application/javascript text/css text/xml;
        gzip_disable "MSIE [1-6]\."; #配置禁用gzip条件，支持正则。此处表示ie6及以下不启用gzip（因为ie低版本不支持）
        gzip_vary on;
        #access_log  logs/host.access.log  main;

location / {
			if ($request_filename ~* .*\.(?:htm|html)$)  ## 配置页面不缓存html和htm结尾的文件
			{
			   add_header Cache-Control "private, no-store, no-cache, must-revalidate, proxy-revalidate";
			}
            root /usr/local/web/eiot_web;
            index index.html;
            try_files $uri $uri/ /index.html;
			error_page 405 =200 http://$host$request_uri;
	        client_max_body_size 200m;
            add_header Access-Control-Allow-Credentials "true";
            add_header Access-Control-Allow-Methods "GET, POST, OPTIONS";
        }

location /ws {
            proxy_pass http://127.0.0.1:20072;
            proxy_read_timeout 60s;
            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection 'Upgrade';
        }

location /webeditor {
            alias   /usr/local/web/webeditor/;
            index index.html;
            try_files $uri $uri/ /index.html;
            add_header Access-Control-Allow-Credentials "true";
            add_header Access-Control-Allow-Methods "GET, POST, OPTIONS";
        }

location /H5 {
            alias /usr/share/nginx/html/yff;
            index index.html index.htm;
            try_files $uri $uri/ /index.html =404;
                error_page 405 =200 http://$host$request_uri;
        }

location /basic/prepayment/{
	        proxy_pass http://127.0.0.1:19900/prepayment/;
	        proxy_http_version 1.1;
	        proxy_set_header Upgrade $http_upgrade;
	        proxy_set_header Connection "upgrade";
	        proxy_set_header Host $host;
	        proxy_cache_bypass $http_upgrade;
	        proxy_buffer_size 4096k;
		    proxy_buffers 16 4096k;
		    proxy_busy_buffers_size 8192k;
		    proxy_temp_file_write_size 8192k;
       }

location /basic/system/{
	        proxy_pass http://127.0.0.1:19900/prepayment/;
	        proxy_http_version 1.1;
	        proxy_set_header Upgrade $http_upgrade;
	        proxy_set_header Connection "upgrade";
	        proxy_set_header Host $host;
	        proxy_cache_bypass $http_upgrade;
	        proxy_buffer_size 4096k;
		    proxy_buffers 16 4096k;
		    proxy_busy_buffers_size 8192k;
		    proxy_temp_file_write_size 8192k;
       }

location /basic/currency/{
	        proxy_pass http://127.0.0.1:19900/prepayment/;
	        proxy_http_version 1.1;
	        proxy_set_header Upgrade $http_upgrade;
	        proxy_set_header Connection "upgrade";
	        proxy_set_header Host $host;
	        proxy_cache_bypass $http_upgrade;
	        proxy_buffer_size 4096k;
		    proxy_buffers 16 4096k;
		    proxy_busy_buffers_size 8192k;
		    proxy_temp_file_write_size 8192k;
        }

location /exchange/{
	        proxy_pass http://127.0.0.1:20001/exchange/;
	        proxy_http_version 1.1;
	        proxy_set_header Upgrade $http_upgrade;
	        proxy_set_header Connection "upgrade";
	        proxy_set_header Host $host;
	        proxy_cache_bypass $http_upgrade;
	        proxy_buffer_size 4096k;
		    proxy_buffers 16 4096k;
		    proxy_busy_buffers_size 8192k;
		    proxy_temp_file_write_size 8192k;
        }

location /basic/image/ {
            add_header Access-Control-Allow-Origin *;
            add_header Access-Control-Allow-Headers X-Requested-With;
            add_header Access-Control-Allow-Methods GET,POST,PUT,DELETE,OPTIONS;
            if ($request_method = 'OPTIONS') {
                return 204;
            }

alias /image/ ;
        }

location /image/ {
            add_header Access-Control-Allow-Origin *;
            add_header Access-Control-Allow-Headers X-Requested-With;
            add_header Access-Control-Allow-Methods GET,POST,PUT,DELETE,OPTIONS;
            if ($request_method = 'OPTIONS') {
                return 204;
            }

alias /image/ ;
        }

location /basic_dev/{
           proxy_pass http://127.0.0.1:20007/;
           proxy_http_version 1.1;
           proxy_set_header Upgrade $http_upgrade;
           proxy_set_header Connection "upgrade";
           proxy_set_header Host $host;
           proxy_cache_bypass $http_upgrade;
        }

#error_page  404              /404.html;

# redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }

# proxy the PHP scripts to Apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
        #    proxy_pass   http://127.0.0.1;
        #}

# pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        #location ~ \.php$ {
        #    root           html;
        #    fastcgi_pass   127.0.0.1:9000;
        #    fastcgi_index  index.php;
        #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;
        #    include        fastcgi_params;
        #}

# deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        #location ~ /\.ht {
        #    deny  all;
        #}
    }

}

```

## 5、Docker 容器调整
替换 /home/acrel-iot-linux/docker/docker-compose.yml 文件
```yaml
services:
  iot-mongo:
    image: mongo:4.4
    container_name: iot-mongo
    restart: always
    volumes:
      - ${DIR}/data/mongo:/data/db
      - /etc/localtime:/etc/localtime
      - ${DIR}/config/mongo/keyfile:/data/mongo_key_file/keyfile
    environment:
      # ROOT用户名
      MONGO_INITDB_ROOT_USERNAME: acrel
      # ROOT用户密码
      MONGO_INITDB_ROOT_PASSWORD: Acrel1a2c3r4e5l6!
    ports:
      # MongoDB连接端口
      - 20051:27017
    deploy:
      resources:
         limits:
            memory: 3G
         reservations:
            memory: 200M
    ulimits:
      nofile:
        soft: 65535
        hard: 65535
  iot-mysql:
    image: mysql:8.0.43
    container_name: iot-mysql
    restart: always
    volumes:
      - ${DIR}/data/mysql:/var/lib/mysql
      - /etc/localtime:/etc/localtime
    command:
      --skip-log-bin
      --lower_case_table_names=1
      --character-set-server=utf8mb4
      --collation-server=utf8mb4_general_ci
      --explicit_defaults_for_timestamp=true
      --sql_mode=STRICT_TRANS_TABLES,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,NO_ENGINE_SUBSTITUTION,NO_ENGINE_SUBSTITUTION
    environment:
      MYSQL_ROOT_PASSWORD: Acrel1a2c3r4e5l6!
    ports:
      - 20052:3306
    ulimits:
      nofile:
        soft: 65535
        hard: 65535
  iot-redis:
    image: redis:latest
    container_name: iot-redis
    restart: always
    volumes:
      - /etc/localtime:/etc/localtime
      - ${DIR}/data/redis:/data
    command:
      --requirepass Acrel1a2c3r4e5l6!
      --masterauth Acrel1a2c3r4e5l6!
    ports:
      - 20053:6379
    ulimits:
      nofile:
        soft: 65535
        hard: 65535
  iot-rabbitmq:
    image: rabbitmq:3.13.7
    container_name: iot-rabbitmq
    hostname : iot-rabbitmq
    restart: always
    environment:
      - LANG=en_US.UTF-8
    volumes:
      - /etc/localtime:/etc/localtime
      - ${DIR}/config/rabbit:/etc/rabbitmq
      - ${DIR}/data/rabbit/data:/var/lib/rabbitmq
      - ${DIR}/data/rabbit/log:/var/log/rabbitmq
    ports:
      - "20072:20072"
      - "30001:1883"
      - "5672:5672"
      - "15672:15672"
    ulimits:
      nofile:
        soft: 65535
        hard: 65535
  iot-openresty:
    image: openresty/openresty
    container_name: iot-openresty
    network_mode: host
    restart: always
    volumes:
      - ${DIR}/config/nginx/nginx.conf:/usr/local/openresty/nginx/conf/nginx.conf
      - ${DIR}/web:/usr/local/web
      - ${DIR}/image:/image
      - ${DIR}/config/nginx/cert:/cert
      - ${DIR}/config/lua:/usr/local/openresty/lua
    ulimits:
      nofile:
        soft: 65535
        hard: 65535
  iot-exchange:
    image: java:8
    container_name: iot-exchange
    network_mode: host
    restart: always
    depends_on:
      - iot-rabbitmq
      - iot-redis
      - iot-mongo
      - iot-mysql
    environment:
      - TZ=${TIME_ZONE}
      - LANG=en_US.UTF-8
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - /usr/share/zoneinfo/${TIME_ZONE}:/etc/localtime
      - ${DIR}/server/exchange:/home/exchange
    command: java -server -Dfile.encoding=UTF-8 -jar  -Duser.timezone="${TIME_ZONE}" /home/exchange/service-exchange-1.0.jar  --spring.config.location=classpath:/,file:/home/exchange/config/ --spring.profiles.active=prod-linux
    ulimits:
      nofile:
        soft: 65535
        hard: 65535
  iot-eiot:
    image: java:8
    container_name: iot-eiot
    network_mode: host
    restart: always
    depends_on:
      - iot-rabbitmq
      - iot-redis
      - iot-mongo
      - iot-mysql
    volumes:
      - /usr/share/zoneinfo/${TIME_ZONE}:/etc/localtime
      - ${DIR}/server/eiot:/home/eiot
      - ${DIR}/image:/image
      - /home/local/acre:/usr/local/acre
      - ${DIR}/cert:/home/cert
      - ${DIR}/server/eiot/log:/log
      - ${DIR}/backup:/backup
    command: java  -server  -Dfile.encoding=UTF-8 -jar -Duser.timezone="${TIME_ZONE}"  /home/eiot/service-eiot-web-1.0.jar  --spring.config.location=classpath:/,file:/home/eiot/config/  --spring.profiles.active=prod-linux
    ulimits:
      nofile:
        soft: 65535
        hard: 65535

```

运行以下命令删除Nginx 容器并且重建：
```bash
docker stop iot-nginx
docker start iot-nginx
docker-compose -f /home/acrel-iot-linux/docker/docker-compose.yml up -d
```
